Green boost

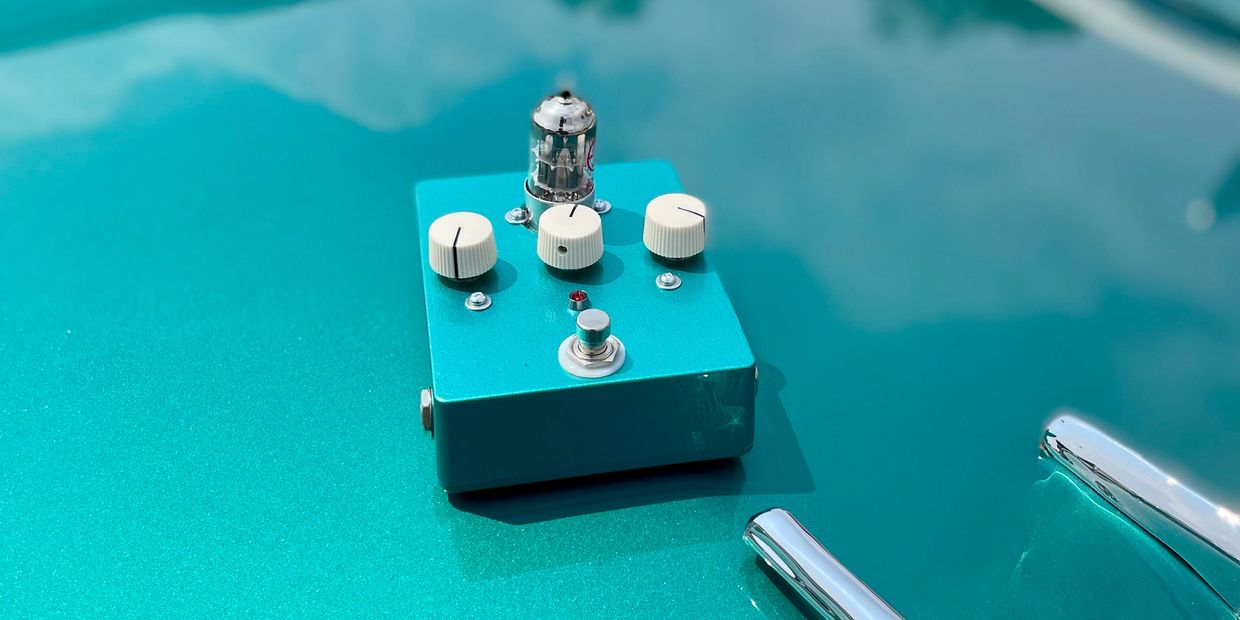

Turquoise guitar pedal with white knobs on a matching turquoise surface.

Le Green Boost est une pédale à lampe polyvalente compatible avec plusieurs types de lampes, notamment les 12AX7, 12AT7, 12AY7 et 12AU7. Elle peut être utilisée aussi bien comme clean boost que comme pédale d'overdrive.


The Green Boost is a versatile tube pedal compatible with a variety of tube types, including 12AX7, 12AT7, 12AY7, and 12AU7. It can be used as a transparent clean boost or as a smooth, mild overdrive pedal. By swapping tubes and adjusting the bias control, players can tailor the pedal's headroom, response, and overall character to suit their playing style.

 Grâce à son potentiomètre de bias, le Green Boost permet d'ajuster le headroom de la lampe afin de moduler sa dynamique et son niveau de saturation. Il est ainsi possible d'obtenir un overdrive à lampe riche en harmoniques, même à faible volume.


Thanks to its bias control, the Green Boost allows you to adjust the tube's headroom, shaping its dynamics and level of saturation. This makes it possible to achieve a harmonically rich tube overdrive, even at low volume levels.

 Le Green Boost peut fonctionner avec une alimentation électrique de 9V à 24V. Certains pickups, tels que les humbuckers ou les P90, nécessitent plus de headroom. Il est donc recommandé d’utiliser une source d’alimentation à 24V dans leur cas.


The Green Boost can operate with a power supply ranging from 9V to 24V. Some pickups, such as humbuckers and P90s, require greater headroom to perform at their best. For this reason, a 24V power supply is recommended when using these types of pickups.

Green Boost

250 $

Add a description about this item


Fiche Technique/specifications

Alimentation/power source

9vDC-24vDC 150ma

Centre négatif/center negative

True bypass

FAQ

Le Green Boost est sensible à la qualité de son alimentation. Pour un fonctionnement optimal et un niveau de bruit minimal, l'utilisation d'une alimentation linéaire est recommandée. Les alimentations à découpage peuvent en effet générer davantage de bruit et d'interférences.

The Green Boost is sensitive to power supply quality. For optimal performance and the lowest possible noise floor, the use of a linear power supply is recommended. Switch-mode power supplies can generate additional noise and interference, which may affect the pedal's performance.


Puisque ce potentiomètre est utilisé pour ajuster le bias de la lampe, un voltage y est appliqué. Ce bruit est causé par ce voltage et est tout à fait normal.

Since this potentiometer is used to adjust the tube's bias, a voltage is applied to it. This noise is caused by the voltage and is completely normal.


Green Boost sound Demo

12AX7 bias Hot 18v power supply (mp3)Download
12AX7 bias Center 18v power supply (mp3)Download

Fiche utilisateur/ User manual

Fiche_utilisateur_user_guide (pdf)Download

Pour plus d'information, écrivez moi!
